Experience highly accurate temperature and relative humidity measurements with HS4001 and STM32G474RE
Temperature and humidity sensing solution for industrial and automotive applications
Published Jul 31, 2025
Click board™
Temp&Hum 27 Click
Dev. board
Nucleo 64 with STM32G474RE MCU
Compiler
NECTO Studio
MCU
STM32G474RE
Achieve reliable temperature and humidity measurements with fast response and long-term stability in harsh environments
A
A
Hardware Overview
How does it work?
Temp&Hum 27 Click is based on the HS4001, a high-performance MEMS-based relative humidity and temperature sensor from Renesas, which delivers fully calibrated and temperature-compensated digital output over a standard I2C interface. This board offers highly accurate and reliable temperature and humidity sensing for a wide range of industrial and automotive applications. Designed to meet demanding environmental requirements, the HS4001 features integrated NIST-traceable calibration, ISO/IEC 17025-compliant production testing, and exceptional sensor-level protection that ensures long-term stability and resistance to environmental stress, aging, and volatile compounds. With a wide operating temperature range from -40°C to +125°C for industrial use and -40°C to +105°C for automotive applications, this sensor achieves typical accuracy levels of ±1.5%RH for humidity and ±0.2°C for temperature within the critical range of -10°C to +80°C. It supports multiple
programmable resolution settings, up to 14-bit resolution with a typical RH resolution of 0.04%, and enables a fast typical humidity response time of just 4 seconds. These features make Temp&Hum 27 Click a solution for climate control systems, HVAC equipment, building automation, medical instrumentation, weather stations, home appliances, and various portable or data logging devices operating in both controlled and harsh environments. This Click board™ is designed in a unique format supporting the newly introduced MIKROE feature called "Click Snap." Unlike the standardized version of Click boards, this feature allows the main sensor area to become movable by breaking the PCB, opening up many new possibilities for implementation. Thanks to the Snap feature, the HS4001 can operate autonomously by accessing its signals directly on the pins marked 1-8. Additionally, the Snap part includes a specified and fixed screw hole position, enabling users to secure the Snap board in their desired location.
This Click board™ uses an I2C interface with clock speeds of up to 400kHz, ensuring fast communication with the host MCU. Beyond communication pins, this board is also equipped with alert (ALR) pin to indicate when a measurement is active in periodic measurement mode or to be used to trigger an interrupt on the host MCU so an appropriate action can be taken if the temperature or humidity is outside of the desired limits. To manage the operation of the HS4001 sensor, Temp&Hum 27 Click integrates the MAX40200 from Analog Devices that enables or disables the sensor through the EN pin. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. It also comes equipped with a library containing functions and example code that can be used as a reference for further development.
Features overview
Development board
Nucleo-64 with STM32G474R MCU offers a cost-effective and adaptable platform for developers to explore new ideas and prototype their designs. This board harnesses the versatility of the STM32 microcontroller, enabling users to select the optimal balance of performance and power consumption for their projects. It accommodates the STM32 microcontroller in the LQFP64 package and includes essential components such as a user LED, which doubles as an ARDUINO® signal, alongside user and reset push-buttons, and a 32.768kHz crystal oscillator for precise timing operations. Designed with expansion and flexibility in mind, the Nucleo-64 board features an ARDUINO® Uno V3 expansion connector and ST morpho extension pin
headers, granting complete access to the STM32's I/Os for comprehensive project integration. Power supply options are adaptable, supporting ST-LINK USB VBUS or external power sources, ensuring adaptability in various development environments. The board also has an on-board ST-LINK debugger/programmer with USB re-enumeration capability, simplifying the programming and debugging process. Moreover, the board is designed to simplify advanced development with its external SMPS for efficient Vcore logic supply, support for USB Device full speed or USB SNK/UFP full speed, and built-in cryptographic features, enhancing both the power efficiency and security of projects. Additional connectivity is
provided through dedicated connectors for external SMPS experimentation, a USB connector for the ST-LINK, and a MIPI® debug connector, expanding the possibilities for hardware interfacing and experimentation. Developers will find extensive support through comprehensive free software libraries and examples, courtesy of the STM32Cube MCU Package. This, combined with compatibility with a wide array of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE, ensures a smooth and efficient development experience, allowing users to fully leverage the capabilities of the Nucleo-64 board in their projects.
Microcontroller Overview
MCU Card / MCU
Architecture
ARM Cortex-M4
MCU Memory (KB)
512
Silicon Vendor
STMicroelectronics
Pin count
64
RAM (Bytes)
128k
You complete me!
Accessories
Click Shield for Nucleo-64 comes equipped with two proprietary mikroBUS™ sockets, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-64 board with no effort. This way, Mikroe allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. More than 1537 Click boards™, which can be stacked and integrated, are at your disposal. The STM32 Nucleo-64 boards are based on the microcontrollers in 64-pin packages, a 32-bit MCU with an ARM Cortex M4 processor operating at 84MHz, 512Kb Flash, and 96KB SRAM, divided into two regions where the top section represents the ST-Link/V2 debugger and programmer while the bottom section of the board is an actual development board. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-64 board out of the box, with an additional USB cable connected to the USB mini port on the board. Most of the STM32 microcontroller pins are brought to the IO pins on the left and right edge of the board, which are then connected to two existing mikroBUS™ sockets. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-64 board with our Click Shield for Nucleo-64, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.
Used MCU Pins
mikroBUS™ mapper
Take a closer look
Click board™ Schematic
Step by step
Project assembly

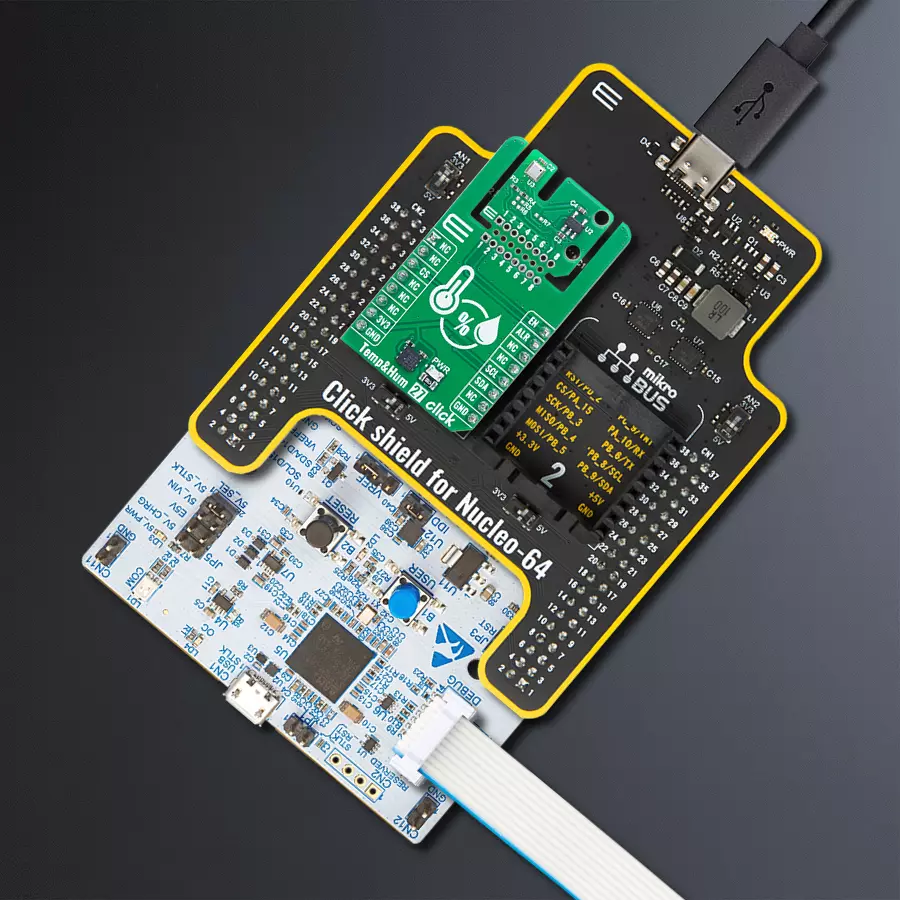

Start by selecting your development board and Click board™. Begin with the Nucleo 64 with STM32G474RE MCU as your development board.
Track your results in real time
Application Output
1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.
2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.
3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.
Software Support
Library Description
Temp&Hum 27 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.
Example Description
This example demonstrates the use of the TempHum 27 Click board by reading ambient temperature and relative humidity values using periodic measurements. After initializing the device and starting the periodic mode at 1 Hz, the application waits for the ALERT pin to indicate data readiness and then logs the measurements to the USB UART terminal.
Key functions:
temphum27_cfg_setup- This function initializes Click configuration structure to initial values.temphum27_init- This function initializes all necessary pins and peripherals used for this Click board.temphum27_get_alert_pin- This function reads the logic level of the ALR (alert) pin.temphum27_start_periodic_meas- This function configures and starts periodic measurement mode at the specified frequency.temphum27_read_data_periodic- This function reads temperature and/or humidity data in periodic measurement mode.temphum27_read_sensor_id- This function reads the unique 32-bit sensor ID.
Application Init
Initializes the logger and the Click driver, resets the device, reads and logs the sensor ID, and starts periodic measurements with a 1-second output rate.
Application Task
Waits for the ALERT pin to go low indicating new measurement data is available, then reads and logs the temperature and humidity values.
Open Source
Code example
The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
/*!
* @file main.c
* @brief TempHum 27 Click example
*
* # Description
* This example demonstrates the use of the TempHum 27 Click board by reading ambient temperature
* and relative humidity values using periodic measurements. After initializing the device and
* starting the periodic mode at 1 Hz, the application waits for the ALERT pin to indicate data
* readiness and then logs the measurements to the USB UART terminal.
*
* The demo application is composed of two sections :
*
* ## Application Init
* Initializes the logger and the Click driver, resets the device, reads and logs the sensor ID,
* and starts periodic measurements with a 1-second output rate.
*
* ## Application Task
* Waits for the ALERT pin to go low indicating new measurement data is available, then reads
* and logs the temperature and humidity values.
*
* @author Stefan Filipovic
*
*/
#include "board.h"
#include "log.h"
#include "temphum27.h"
static temphum27_t temphum27;
static log_t logger;
void application_init ( void )
{
log_cfg_t log_cfg; /**< Logger config object. */
temphum27_cfg_t temphum27_cfg; /**< Click config object. */
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_cfg.is_interrupt = false;
log_init( &logger, &log_cfg );
log_info( &logger, " Application Init " );
// Click initialization.
temphum27_cfg_setup( &temphum27_cfg );
TEMPHUM27_MAP_MIKROBUS( temphum27_cfg, MIKROBUS_1 );
if ( I2C_MASTER_ERROR == temphum27_init( &temphum27, &temphum27_cfg ) )
{
log_error( &logger, " Communication init." );
for ( ; ; );
}
uint32_t sensor_id = 0;
if ( TEMPHUM27_ERROR == temphum27_read_sensor_id ( &temphum27, &sensor_id ) )
{
log_error( &logger, " Sensor ID read." );
for ( ; ; );
}
log_printf ( &logger, " Sensor ID: 0x%.8LX\r\n", sensor_id );
if ( TEMPHUM27_OK == temphum27_start_periodic_meas ( &temphum27, TEMPHUM27_PERIODIC_FREQ_1S ) )
{
log_printf ( &logger, " Periodic measurement started with 1Hz output\r\n" );
}
log_info( &logger, " Application Task " );
}
void application_task ( void )
{
float temperature = 0;
float humidity = 0;
// Wait for a periodic data ready (alert pin falling edge)
while ( !temphum27_get_alert_pin ( &temphum27 ) );
while ( temphum27_get_alert_pin ( &temphum27 ) );
if ( TEMPHUM27_OK == temphum27_read_data_periodic ( &temphum27, &temperature, &humidity ) )
{
log_printf ( &logger, " Temperature: %.2f degC\r\n", temperature );
log_printf ( &logger, " Humidity: %.2f %%RH\r\n\n", humidity );
}
}
int main ( void )
{
/* Do not remove this line or clock might not be set correctly. */
#ifdef PREINIT_SUPPORTED
preinit();
#endif
application_init( );
for ( ; ; )
{
application_task( );
}
return 0;
}
// ------------------------------------------------------------------------ END
