Create a solution for clear and impactful messaging using JSS-5611BUB-21 and PIC18F45K80

Red means readable: Large 7-segment brilliance

Published Nov 01, 2023

Click board™

UT-L 7-SEG R Click

Dev. board

EasyPIC v8

Compiler

NECTO Studio

MCU

PIC18F45K80

Our large red 7-segment display is engineered to provide unmatched visibility, combining size and clarity to ensure your messages and data are conveyed with maximum impact and readability

Hardware Overview

How does it work?

UT-L 7-SEG R Click is based on two red JSS-5611BUB-21s, ultra-thin single-digit numeric displays from Ningbo Junsheng Electronics. This high-intensity and reliable blue source color device is made with Indium-Gallium-Nitride light-emitting diode conducting material. It features low current operation, high light output, excellent character appearance, and is mechanically rugged. The display can work on 5V and 3.3V and has a common anode as its internal design. It consists of seven red LED segments that form an 8

number and the eighth segment as a decimal point, or DP. The communication between the host MCU and the UT-L 7-SEG R Click is established via an industry-standard shift-register-plus-latch-type serial interface and the MAX6969, 16-port constant-current LED driver from Analog Devices. This driver has a 4-wire serial interface using four inputs and a data output. The output-enable input (OE) gates to all 16 outputs ON and OFF and is fast enough to be used as a PWM input for LED intensity control. The constant-current

outputs are programmed together to around 15mA using a single external resistor. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the PWR SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

UT-L 7-SEG R Click hardware overview image

Features overview

Development board

EasyPIC v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports many high pin count 8-bit PIC microcontrollers from Microchip, regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, EasyPIC v8 provides a fluid and immersive working experience, allowing access anywhere and under any

circumstances at any time. Each part of the EasyPIC v8 development board contains the components necessary for the most efficient operation of the same board. In addition to the advanced integrated CODEGRIP programmer/debugger module, which offers many valuable programming/debugging options and seamless integration with the Mikroe software environment, the board also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector.

Communication options such as USB-UART, USB DEVICE, and CAN are also included, including the well-established mikroBUS™ standard, two display options (graphical and character-based LCD), and several different DIP sockets. These sockets cover a wide range of 8-bit PIC MCUs, from the smallest PIC MCU devices with only eight up to forty pins. EasyPIC v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

Microcontroller Overview

MCU Card / MCU

Architecture

PIC

MCU Memory (KB)

Silicon Vendor

Microchip

Pin count

RAM (Bytes)

3648

Used MCU Pins

mikroBUS™ mapper

RST

Load-Enable

RE0

SPI Clock

RC3

SCK

SPI Data OUT

RC4

MISO

SPI Data IN

RC5

MOSI

Power Supply

3.3V

Ground

GND

Light Intensity Control

RC0

PWM

INT

SCL

SDA

Power Supply

Ground

GND

Take a closer look

Click board™ Schematic

Step by step

Project assembly

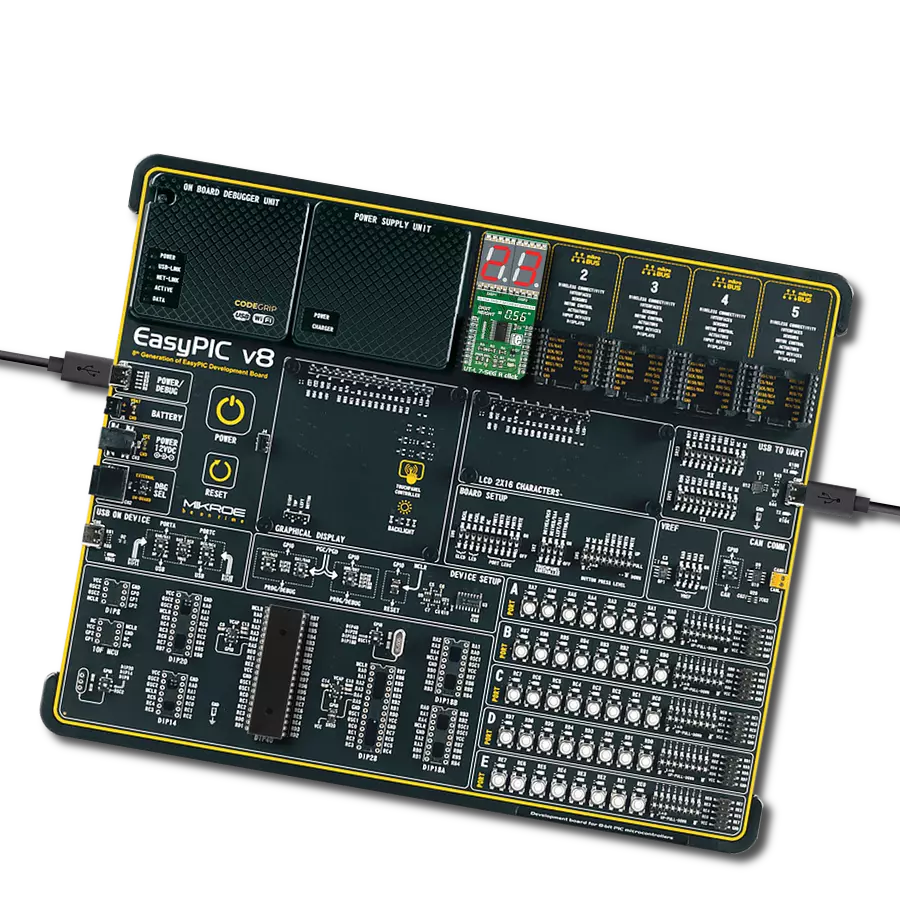

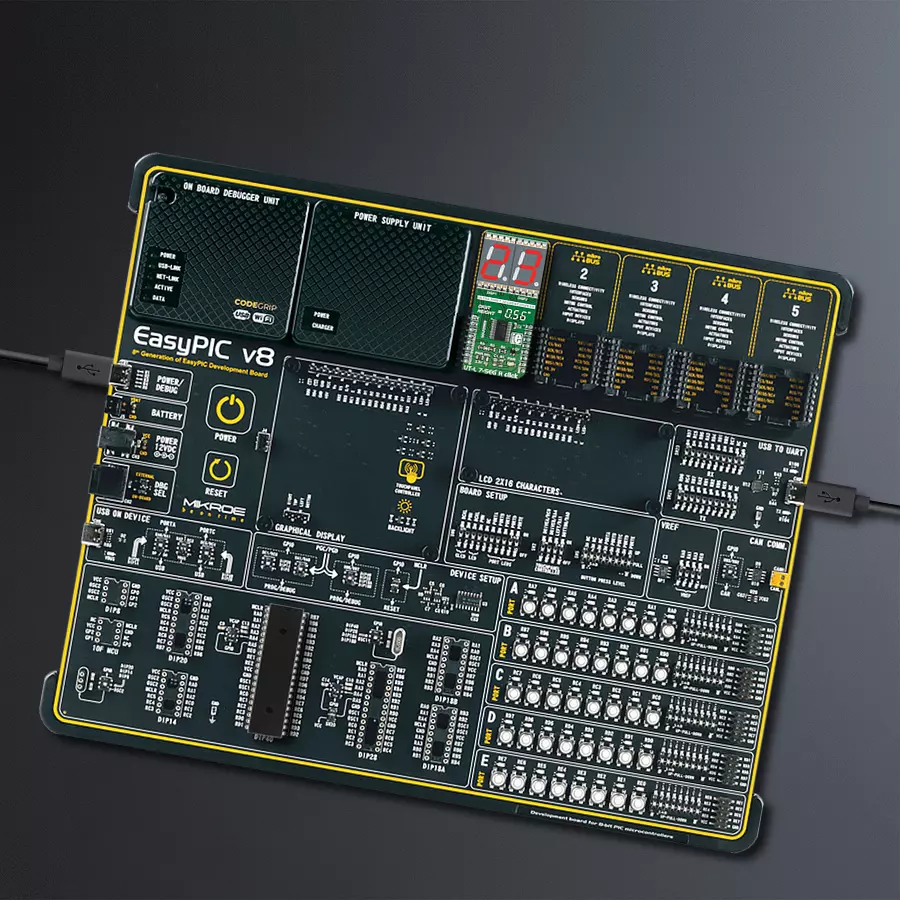

EasyPIC v8 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the EasyPIC v8 as your development board.

NECTO Output Selection Step Image hardware assembly

In the advanced settings, pay special attention to the Redirect standard output field. By default, it is set to Application output as the method of displaying final results. To show results via a UART terminal, select the “UART” option in that field and click the “SAVE” button. You will be returned to the Compiler field, and now you can move on to the next step by pressing the “NEXT” button.

GNSS2 Click front image hardware assembly

EasyPIC v8 Access DIPMB 1 - upright/background hardware assembly

NECTO Compiler Selection Step Image hardware assembly

Necto DIP image step 7 hardware assembly

Software Support

Library Description

This library contains API for UT-L 7-SEG R Click driver.

Key functions:

utl7segr_generic_write - This function writes a desired number of data bytes starting from the selected register by using SPI serial interface
utl7segr_display_state - This function turns display on and off.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief UT-L7-SEGR Click example
 *
 * # Description
 * The demo application shows basic usage of the UT 7 SEG display.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Configuring Clicks and log objects.
 * Settings the Click in the default configuration.
 *
 * ## Application Task
 * Draws numbers from 0 to 99 on the screen.
 *
 * @author Stefan Ilic
 *
 */

#include "board.h"
#include "log.h"
#include "utl7segr.h"

static utl7segr_t utl7segr;
static log_t logger;

void application_init ( void ) {
    log_cfg_t log_cfg;            /**< Logger config object. */
    utl7segr_cfg_t utl7segr_cfg;  /**< Click config object.  */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    // Click initialization.

    utl7segr_cfg_setup( &utl7segr_cfg );
    UTL7SEGR_MAP_MIKROBUS( utl7segr_cfg, MIKROBUS_1 );
    err_t init_flag  = utl7segr_init( &utl7segr, &utl7segr_cfg );
    if ( init_flag == SPI_MASTER_ERROR ) {
        log_error( &logger, " Application Init Error. " );
        log_info( &logger, " Please, run program again... " );

        for ( ; ; );
    }

    utl7segr_default_cfg ( &utl7segr );
    log_info( &logger, " Application Task " );
}

void application_task ( void ) {
    log_info( &logger, "---- Number counter ----" );

    for ( uint8_t cnt = 0; cnt < 100; cnt++ ) {
        utl7segr_display_number( &utl7segr, cnt, UTL7SEGR_DOT_LEFT );
        Delay_ms ( 500 );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
